Brief introduction:

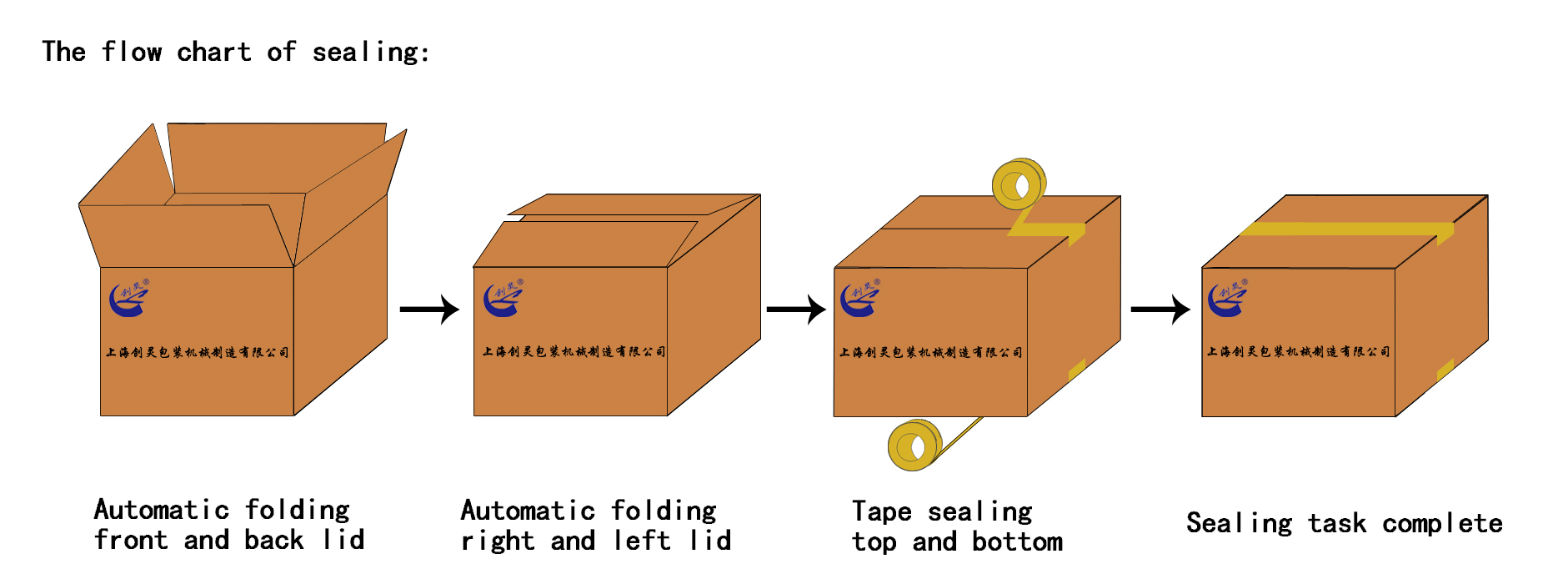

This automatic carton forming machine is gather carton board take, carton forming, lid fold and bottom sealed in one.
The machine adopts P.L.C and touch screen system, whole process are auto-complete. And the way of tape seal (or hot melt glue) break through traditional sealing way, makes seal flat and driving fit, never skip.
The equipment of lack material early warming and stopped when run out of material, convenience for operation and management, reduce worker and labor intensity, it`s the necessary facility for automated and large-scale production.
It`s can widely used in food, medicine, dairy, beverage, commodity and electronic products.
Product parameters：
Model | KXJ-4035L |
Voltage | 220V50HZ |
Height of the table | Min. 600mm、Max. 720mm |
Sealing speed | 13-15 case/min |
Tape size | 48、60、75mm*1000 yard |
Air source | 6～7KG |
Size of carton(L*W*H) | (200～400)*(150～350)*(100～350)mm （min size can`t satisfied simultaneously） |
Dimension (L*W*H) | 2000*1900*1450mm |
Weight | Net weight 370Kg |
