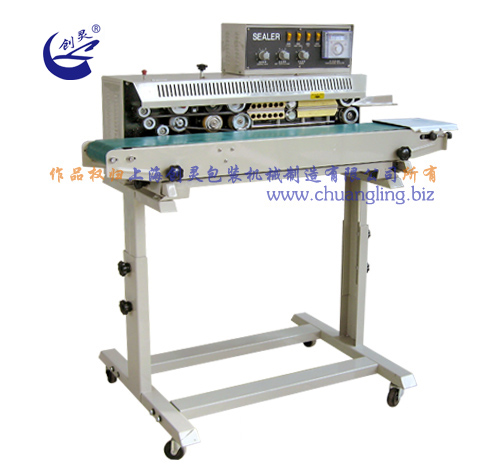

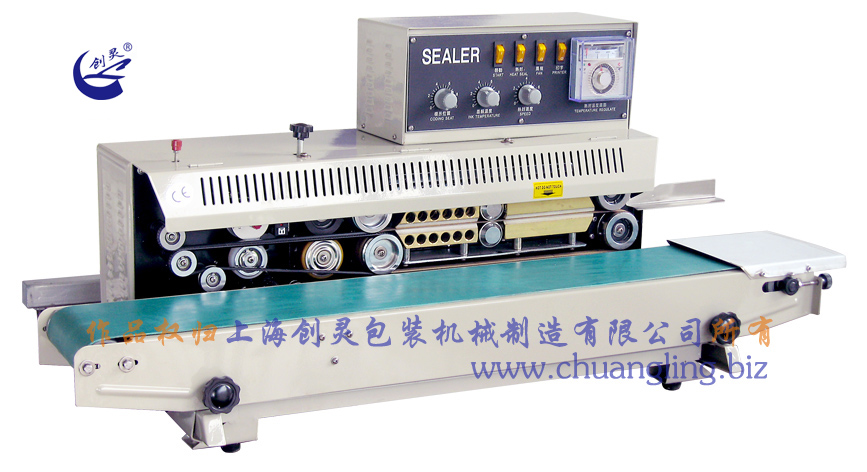

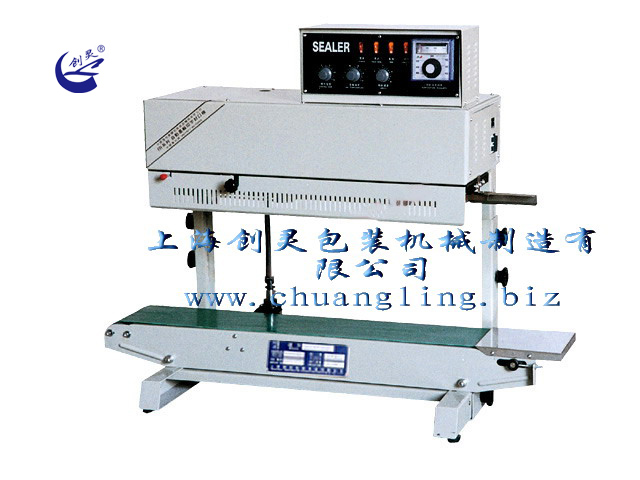

Brief introduction: FRM-980 series ink coding continuous sealer can be applied to any sealing materials . Stepless speed , temperature control, adjustable temperature range is extremely broad. Aircraft in the sealing while using solid ink printing colored labels , writing clear, colors, instant printing and instant dry, strong adhesion , with a suitable R-type or T- type arrangement of dual-use printing wheel , can be printed R type 2 line 4 words (PT18) or three lines on the 5th word (PT10.5). FRM-980 series has a variety of models are available. Product parameters: |
Model : | FRM-980I ( Horizontal ) | FRM-980II ( Vertical ) | FRM-980III ( Floor ) | FRM-980 |
Voltage: | AC 220V/50Hz 110V/60Hz | 220V-980 | ||
Motor power: | 50W | 80W | ||
Sealing power: | 300W*2 | 440W | ||
Sealing Speed : | 0-12m/min | 0-16m/min | ||
Sealing width : | 8mm,10mm | 6-13mm | ||
Temperature range: | 0-300。C | 0-300。C | ||
Printing Type : | Solid ink | |||
Sealing Center to Conveyor height : | 10-40mm | 200-320mm | 10-40mm | 10-40MM |
Film thickness : | <=0.08mm | |||
Conveyor Size : | 930X150(mm) | |||
Conveyor single maximum load weight : | <=1kg | 单件≤5kg | ||
Overall conveyor loading weight : | <=3kg | |||
Dimensions ( L × W × H ): | 950×400×430(mm) | 950×400×639(mm) | 1050×560×900(mm) | 920×390×290 |
Weight : | 45kg | 50kg | 29.5kg |
