Brief introduction:

     DBF-900 series sealer is suitable for sealing plastic pouch packaging.  It has electronic temperature control and stepless speed transmission,  automatic continuous sealing plastic films of various  materials. According to client`s need, the machine can assemble  coupled indentation marking wheels and counting device.

Product parameter:

Model:

DBF-900W  (Horizontal)

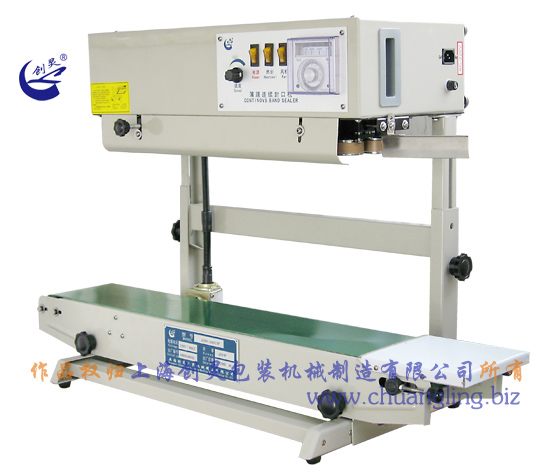

DBF-900LW (vertical)

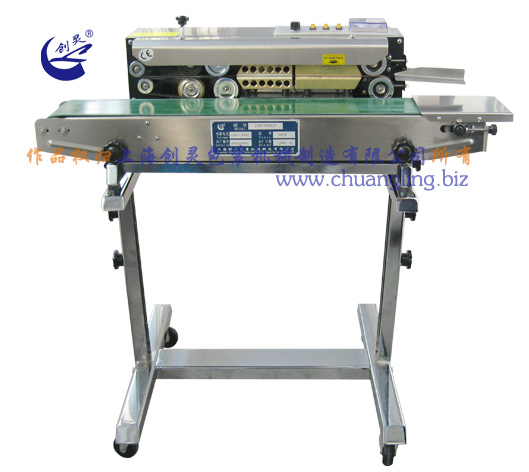

DBF-900LD (floor)

Power supply voltage:

AC 220V/50Hz 110V/60Hz

Total power:

500W

Sealing Speed:

0-12m/min

Sealing width:

8mm,10mm

Height of Sealing center to Conveyor:

10-40mm

150-270mm

10-40mm

Temperature range:

0-300.C

Printing Type:

Solid-ink

Single maximum load weight of conveyor:

1kg

Overall loading weight of conveyor:

3kg

Dimensions (L * W * H):

800X420X320(mm)

800X380X550(mm)

800X420X1000(mm)

Weight:

30kg

35kg

38kg
